Pipe Flashings

  • Manufactured from EPDM or silicone rubber, ROOFJACK is compounded for maximum resistance to ozone, UV light, & temperature extremes.

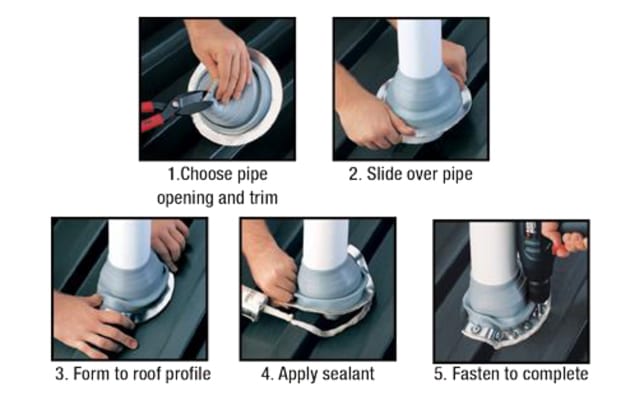

  • Flexible aluminum base will allow the flashing to conform to any metal roof configuration. Pipe location can be centered in the flat of the panel or the rib. Urethane sealant & self-drilling screws complete the installation.
  • ROOFJACK are well-marked so they can easily be cut with shears to fit exactly the pipe size used.
  • ROOFJACK are available in Black or Gray EPDM as well as Red or Gray high temperature Silicone.

Size

PIPE SIZE BASE
DIAMETER
COLOR
MATERIAL
#1 1/4” -2-1/2” 4.75” (120.7mm) Black/Gray EPDM & Red/Gray Silicone
#2 1-3/4”-3” 6.21” (157.7mm) Black/Gray EPDM & Red/Gray Silicone
#3 1/4”-5” 7.74” (196.6mm) Black/Gray EPDM & Red/Gray Silicone
#4 3”-6-1/4” 9.26” (235.2mm) Black/Gray EPDM & Red/Gray Silicone
#5 4-1/4”-7-3/4” 10.75” (273.0mm) Black/Gray EPDM & Red/Gray Silicone
#6 5” – 9” 12.50” (317.5mm) Black/Gray EPDM & Red/Gray Silicone
#7 6” – 11” 14.60” (370.8mm) Black/Gray EPDM & Red/Gray Silicone
#8 7” – 13” 16.5” (419.1mm) Black/Gray EPDM & Red/Gray Silicone
#9 9” – 19” 25.25” (641.1mm) Black/Gray EPDM & Red/Gray Silicone
